reproduced step movie emart_tv.mp4 (9,039,523 bytes) |
|
|
log message. |
|
|

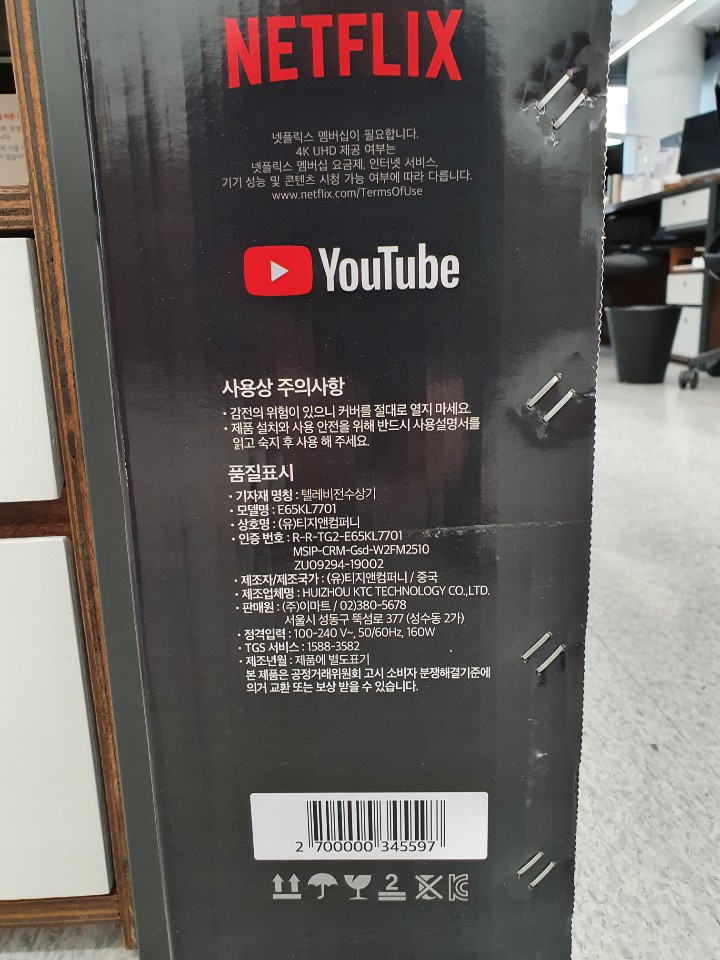

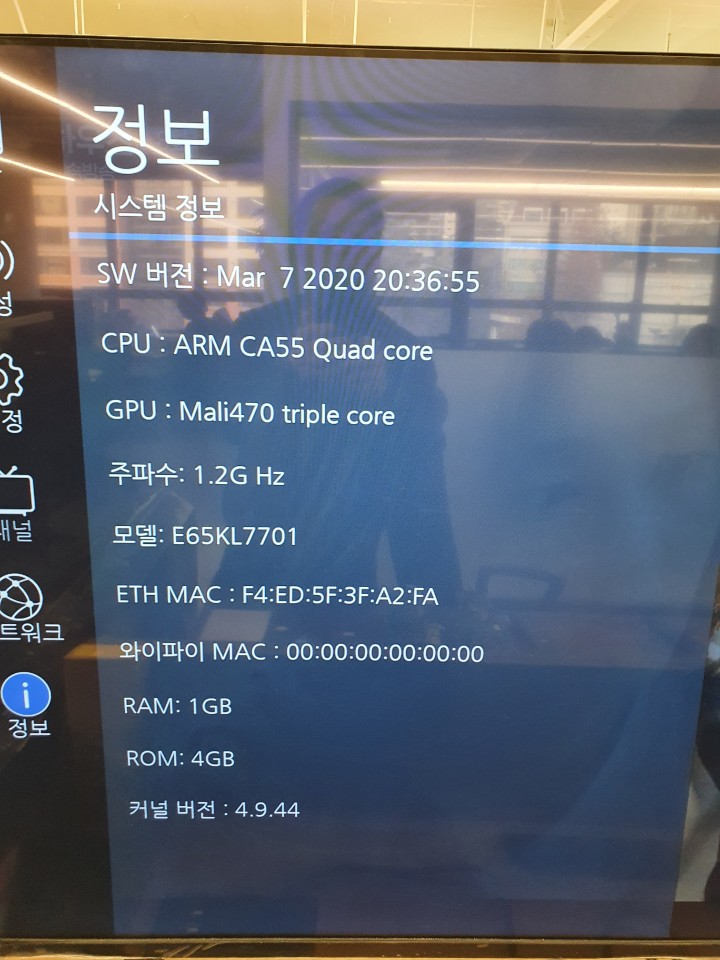

tv information KakaoTalk_20201202_143350971_01.jpg (164,795 bytes) KakaoTalk_20201202_143350971_02.jpg (130,350 bytes) |
|
|
Hi Kerwin, Please help to investigate this issue according to the finding on Eagle box. |
|
|
Hi Wooshin, Please help to get EDID of that eMart TV. ( console:/ # test_disp edid read > /sdcard/eMart_edid.txt ) Thanks ! |
|
|
Hi, kerwin Please check attached file. Thanks. eMart_edid.txt (902 bytes) |
|
|
Hi Wooshin, Thanks for the EDID data. Could you try to set resolution by 'test_disp' command ? If it is fine, I think we need to review BTF HAL implementation. ==== command ==== test_disp setres [Resolution ID] [BitDepth] [Color fmt] [Aspect Ratio] console:/ # test_disp setres 64 1 3 2 |
|
|
Hi Kerwin, When i use "test_disp setres 64 1 3 2", I can see. thanks. |
|
|
Hi Wooshin, I add debug log message. Please help to replace the so file and grab the log. ===== command ==== adb connect 211.44.3.105:5815 adb root adb connect 211.44.3.105:5815 adb remount adb push libbtvhal_setting.so /vendor/lib/ adb reboot and If you replace a shorter HDMI cable that can support 4kp60 resolution, will you still see the same problem? Thanks. Jerry |
|
|
|
|
|
@Jerry Lin, We tested 2 cables. I updated lib file first, and captured the log file with 2 cables. One has the issue when change Screen resolution from 720p to Auto(UHD). And the other one is OK. SWAN_OK_UHD.zip : No issue log SWAN_NO_UHD.zip : No video after changing Screen resolution to Auto(USD). |
|
|
Hi Wooshin, We have tested the patch provided by Synaptics, but Synaptics still needs to confirm some issues. Our hardware has also been modified for HDMI signal strength and will be verified in DVT build. Jerry |
|
|
Hi jerry, Ok, I will do test it if i get new BD. Thanks. |
|
|
Hi Wooshin, We used a long hdmi cable test on the DVT board and the result seemed to be the same. We have asked HW to confirm if there are other problems, We also check our long HDMI cable on AI2 and the result seemed to be the same. Do you have the same situation when using a long hdmi cable on AI2 ? Jerry |
|
|
Hi Jerry, What meter is cable for long hdmi cable ? Please give information about long cable. And then I will find that cable and do test. Thanks. |
|
|
Hi Wooshin, SKB provides us with a 1.5 meter long HDMI cable for HW for SI test. This HDMI cable is normal to test the resolution switching, but when we connect two identical HDMI cables in series to test the resolution switching, it is abnormal. I remember that you also used two HDMI cable with different lengths to test. One can switch the resolution normally , the other is not. Jerry |
|
|
I will do test in DVT. Thanks. |
|
|
Hi Wooshin, HW had changed the hardware design in DVT, if there is no problem, let's close it. Thanks. |
|
|
No issue in current version |
